Trenchless, no digging
Pipe relining in Perth: we reline cracked, corroded, and root-damaged pipes from the inside, so your lawn, driveway, and paving stay exactly where they are.
The liner goes in through your existing access points.
We find the exact damage on CCTV before we quote.
Show us a written quote for the same job from a licensed Perth plumber.
If the same drain blocks over and over, jetting and snaking are treating the symptom, not the cause.
The problem
A cracked, offset, or root-damaged pipe will keep collecting roots, silt, and paper no matter how often it is cleared. Digging up the pipe used to be the only permanent fix. That meant a trench across the lawn, a torn-up driveway, or a hole through the slab, plus the cost of reinstating whatever sat on top of the pipe.
The fix
Pipe relining exists to skip the dig. We repair the pipe from the inside, through the existing access points, and leave the surface untouched. For smaller damage, see point repairs and patch relining.

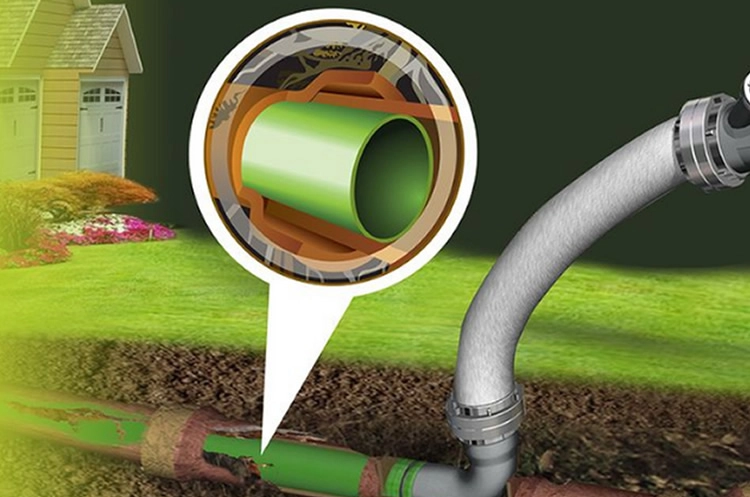

A resin-coated liner is fed into the pipe, inflated against the pipe wall, and left to cure. Once set, it forms a new, jointless pipe inside the old one.
We run a CCTV drain camera through the pipe to find the exact location, length, and cause of the damage.
We jet the pipe to remove silt, grease, and debris. Where roots or heavy scale block the line, the IMS Robotic Cutter goes in first so the liner has a clean pipe wall to bond to.
We feed the resin-soaked Brawoliner liner into the pipe and invert it into place, so the resin faces outward against the damaged pipe wall.
The resin cures in place, sealing cracks, root entry points, and pipe joints. A final camera pass confirms the liner has taken full contact with the host pipe.
Pricing
Relining cost depends on pipe length, diameter, and access. We quote after the CCTV inspection, once we can see exactly what the pipe needs, and you agree the price before any work starts.
| Job type | Typical cost | What's included |
|---|---|---|
| Pipe relining (40mm to 225mm, runs up to 58 m) | Quoted after the CCTV inspection | Brawoliner, 40mm to 225mm, runs from 900mm to 58 m |
| Coming out to quote | No call-out fee | Price agreed before any work starts |
| A written quote from another licensed plumber | We beat it | For the same job |
Typical Perth ranges, not a fixed price list. We confirm your exact price on site, before any work starts.
Grease and hair clear fast with a hydro jet. Roots or solids need cutting equipment first.
A pipe under a slab, driveway or garden bed adds access time.
Old clay or rusted galvanised pipe can need extra prep before the repair.
Relining avoids digging. A full dig-and-replace adds excavation and reinstatement.
To come out and quote your job.
Got a written quote from another licensed Perth plumber for the same job? Send it to us.
Why Plumbed Right
Cheaper methods apply resin from the outside in, so the installer can't confirm full coverage until the liner has already cured. If a section is under-saturated, it often doesn't show until the fault reappears a year or so later.
The Brawoliner method lets us check resin coverage on the liner before it goes into the pipe.
The IMS Robotic Cutter pre-clears roots and scale, so we can prepare and reline pipes that other companies would need to excavate.
Licensed and insured, Lic. PL7390. A Perth drainage business, not a franchise call centre.
Relining suits cracked, corroded, or root-affected sections that are still round. A fully collapsed pipe needs excavation, and we'll tell you that during the camera inspection, not after we've quoted.
From the people we fixed it for
From our Google reviews.
Read all reviews on GoogleMichael gave us an honest report on our problem and the cost to repair, which we found very reasonable.
Free on-site quote
Plumbed Right provides a free on-site quote before any work starts, so you know the exact price before we touch a tool. No call-out fee, no obligation to book.
Questions
Still unsure? Call and talk to our team, not a call centre.
Once the resin liner cures, it forms a rigid, jointless pipe inside the old one. It seals cracks and root entry points and restores full flow, without removing the original pipe.
No. The liner goes in through your existing access points: an inspection opening, a gully trap, or the toilet drain. Your lawn, paving, and driveway stay untouched.
Yes. We clear tree roots first with the IMS Robotic Cutter, then reline the pipe so roots can't re-enter through the same cracks. See our IMS Robotic Cutter page for how the cutting process works.
We reline pipes from 40mm to 225mm in diameter, in continuous runs up to 58 metres, using the Brawoliner system.
How long it takes depends on the length and number of sections. We give you the timeframe with the quote, after the camera inspection.
Relining carries a 25-year warranty on our work. The liner material has a 50-year design life.
Relining avoids the cost of excavation, reinstatement and landscaping repair that comes with a dig-up. Whether it works out cheaper depends on depth, length and access, so we price it after the camera inspection.
Perth drain specialists
Book a CCTV inspection and find out whether your pipe can be relined without digging. Call 0499 281 430, or get a free quote.
